certification in progress
Italian design, built in Germany
made in eu
10 years  of open source machine building experience

100% open source. Not 90%.

Piccola CNC - desktop milling machine

Live on

Limited pre-launch offer!

from

€1499*

€1279

or €1092

Certification in progress
Italian design, built in Germany
Made in EU
10 years  of open source machine building experience

100% open source. Not 90%.

Piccola CNC - desktop milling machine

Live on

Back it now

New Paragraph



Certification in progress
Italian design, built in Germany
Made in EU

100% open source.

Not 90%.

Piccola CNC - desktop milling machine

Live on

Back it now

From the same creators of:

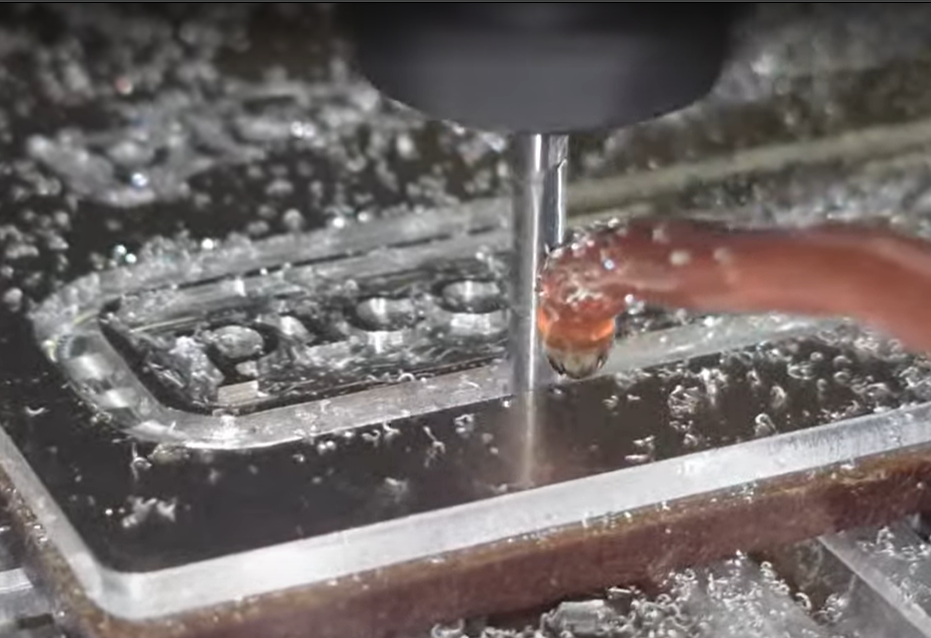

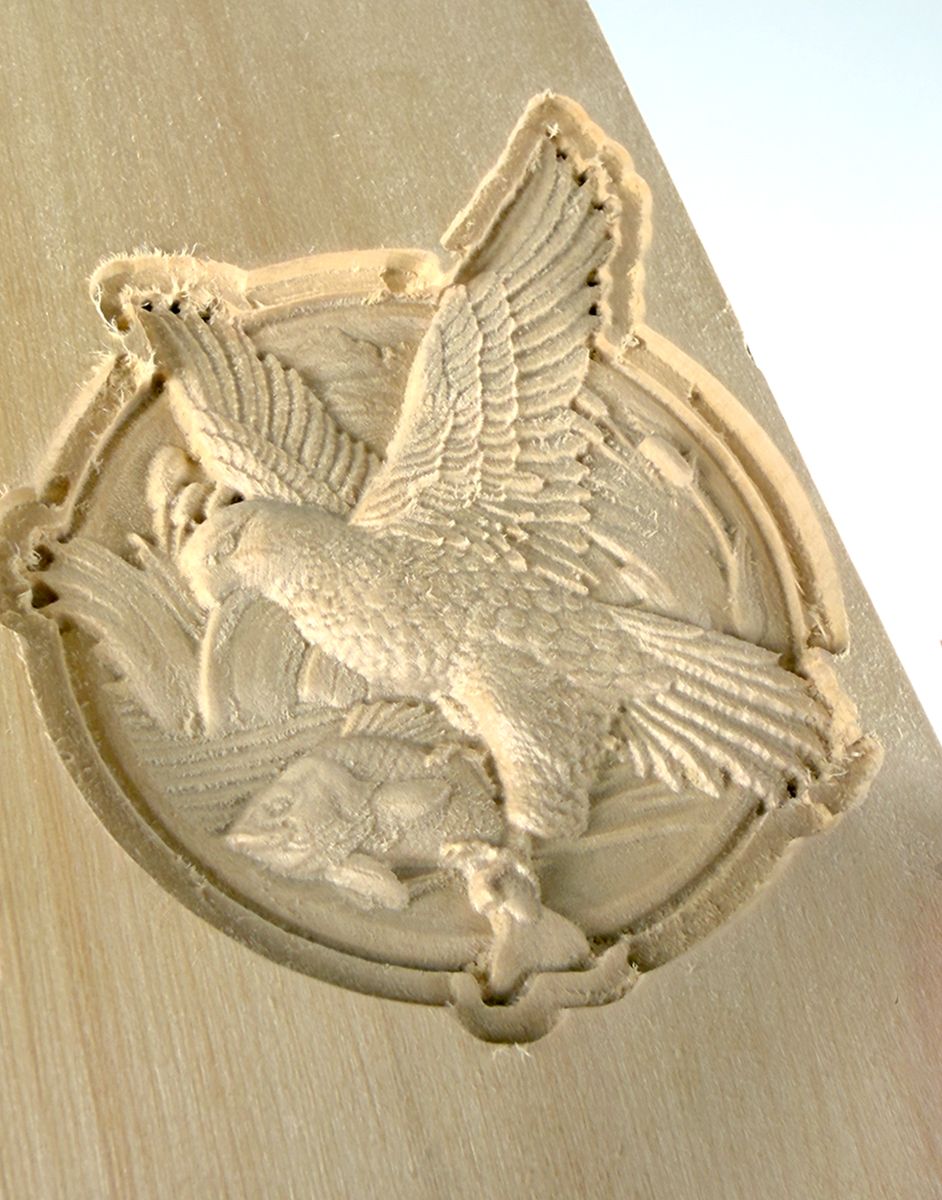

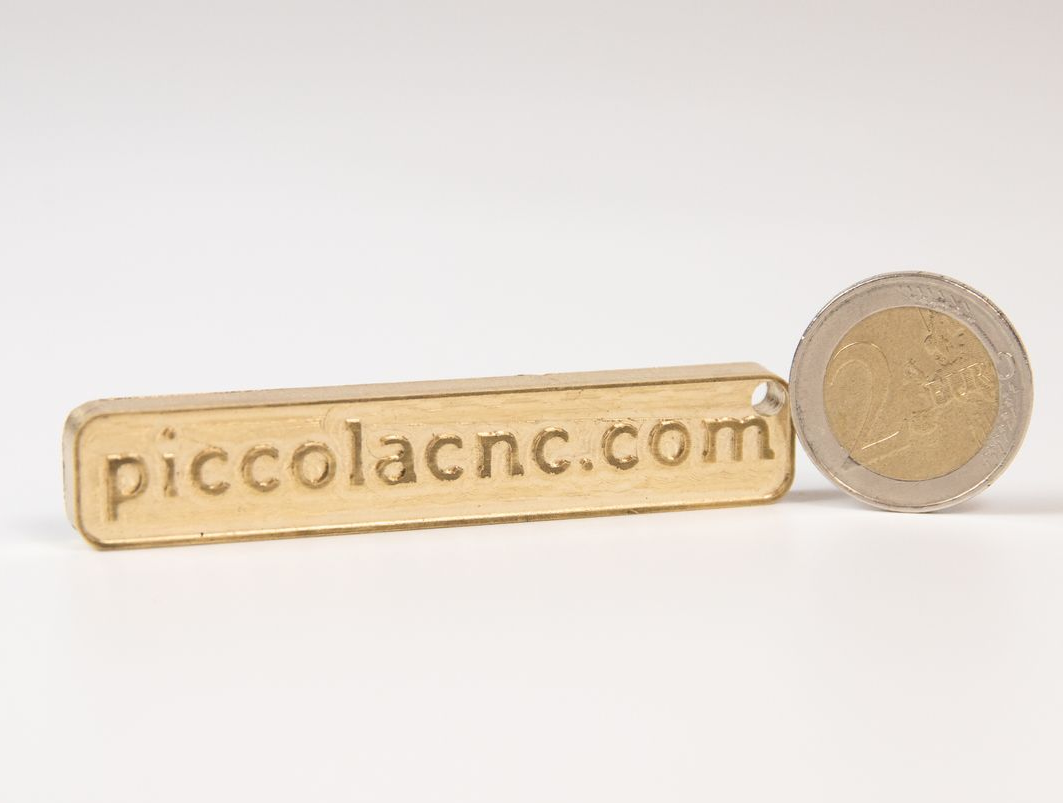

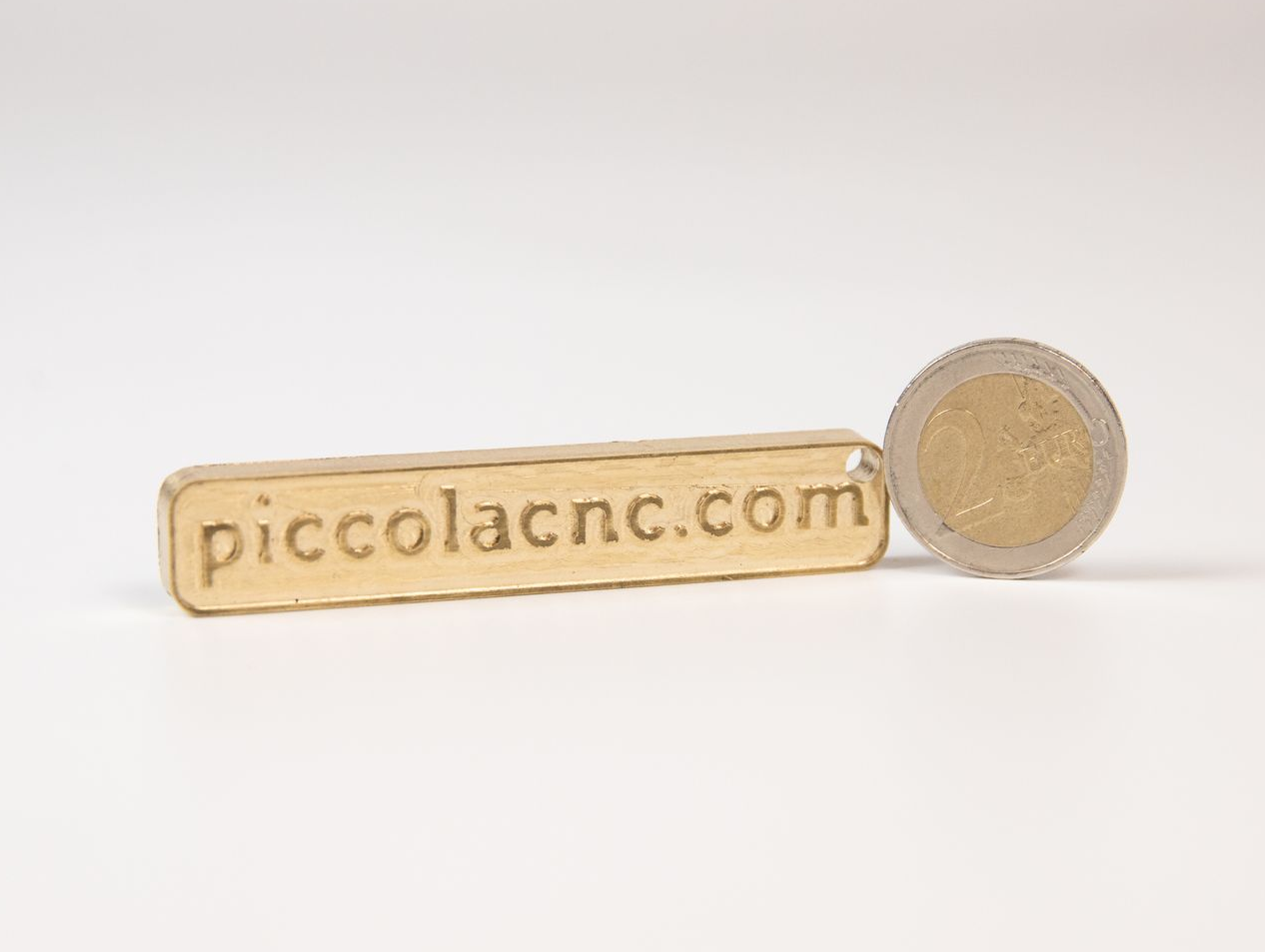

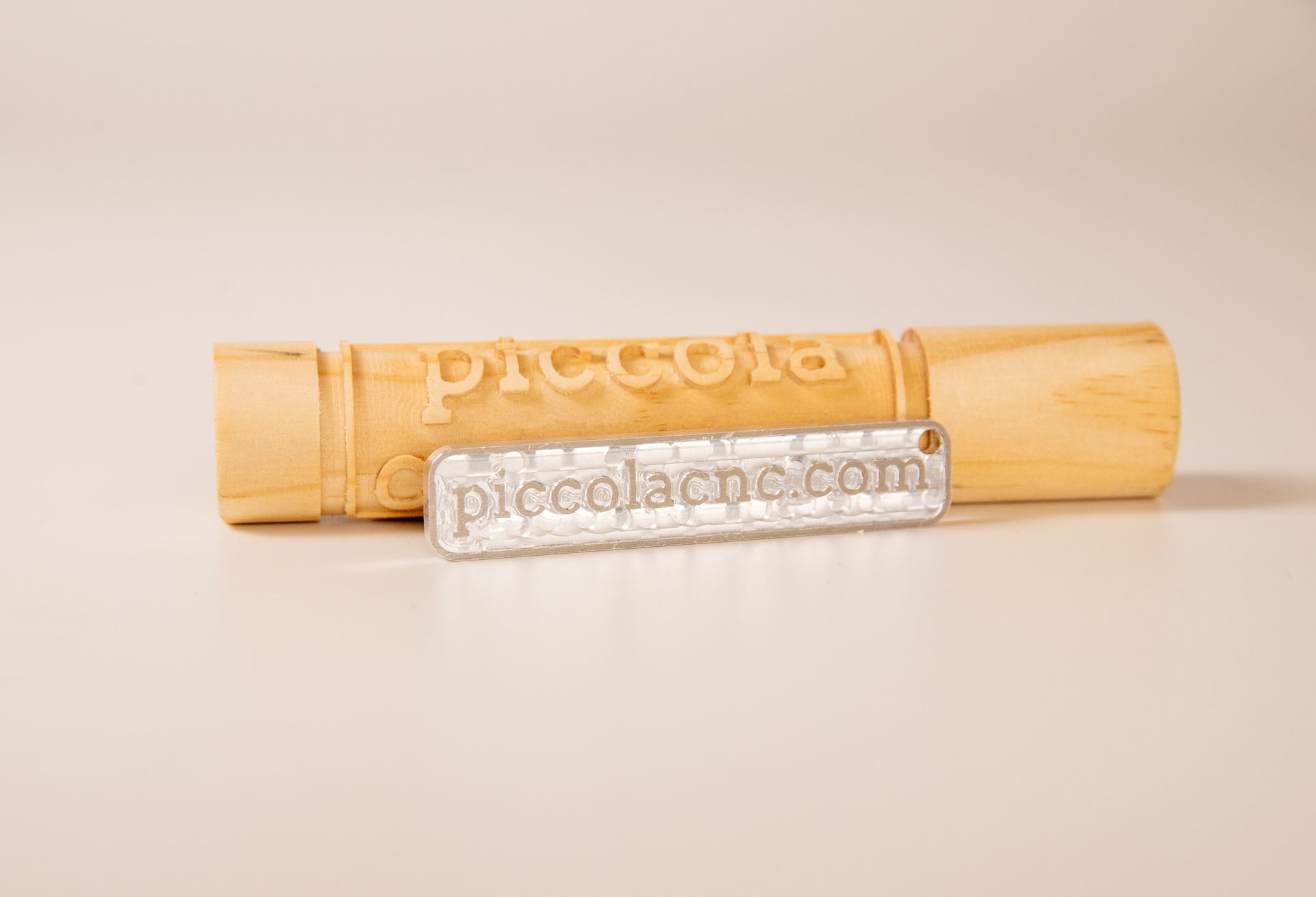

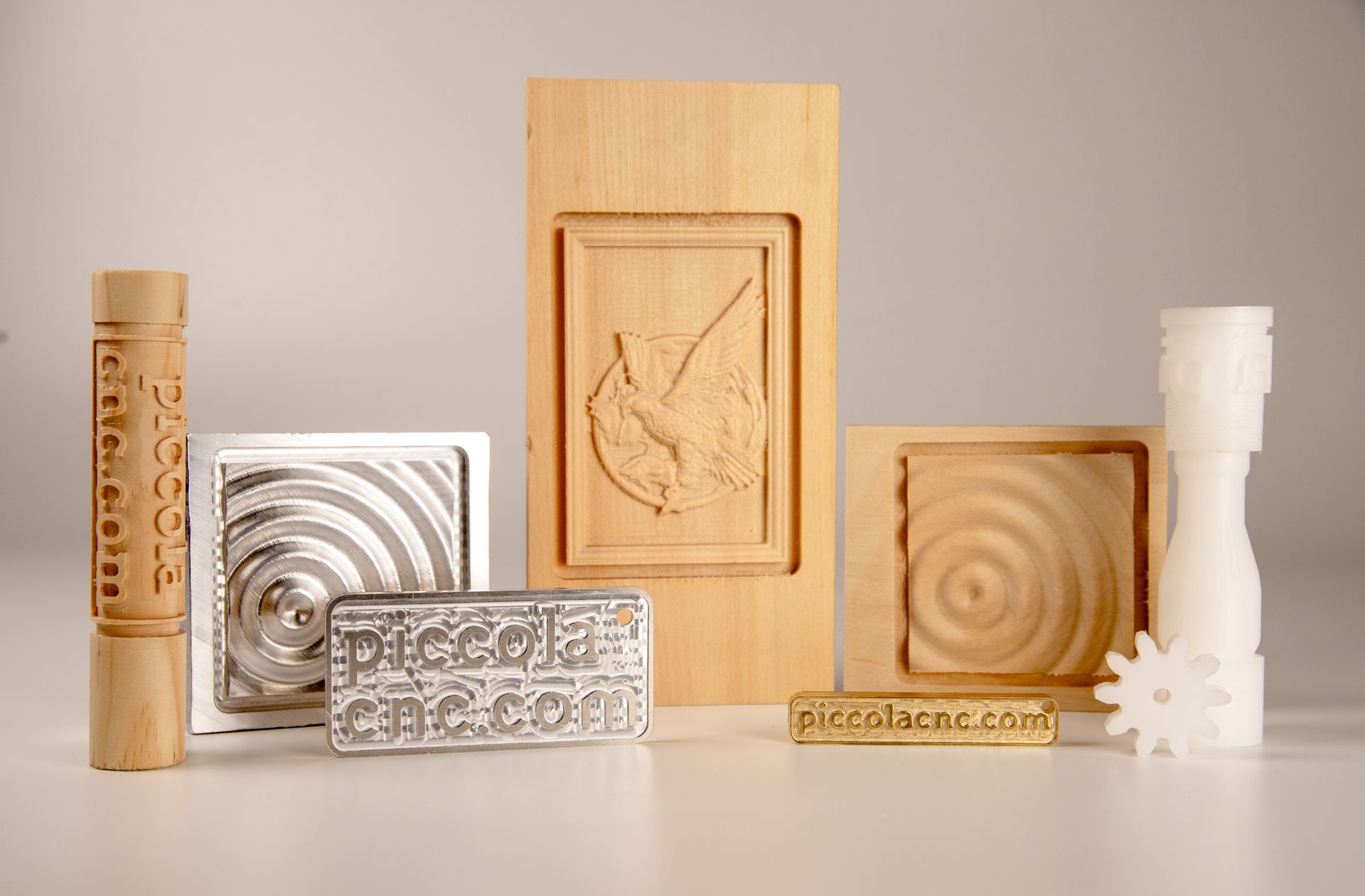

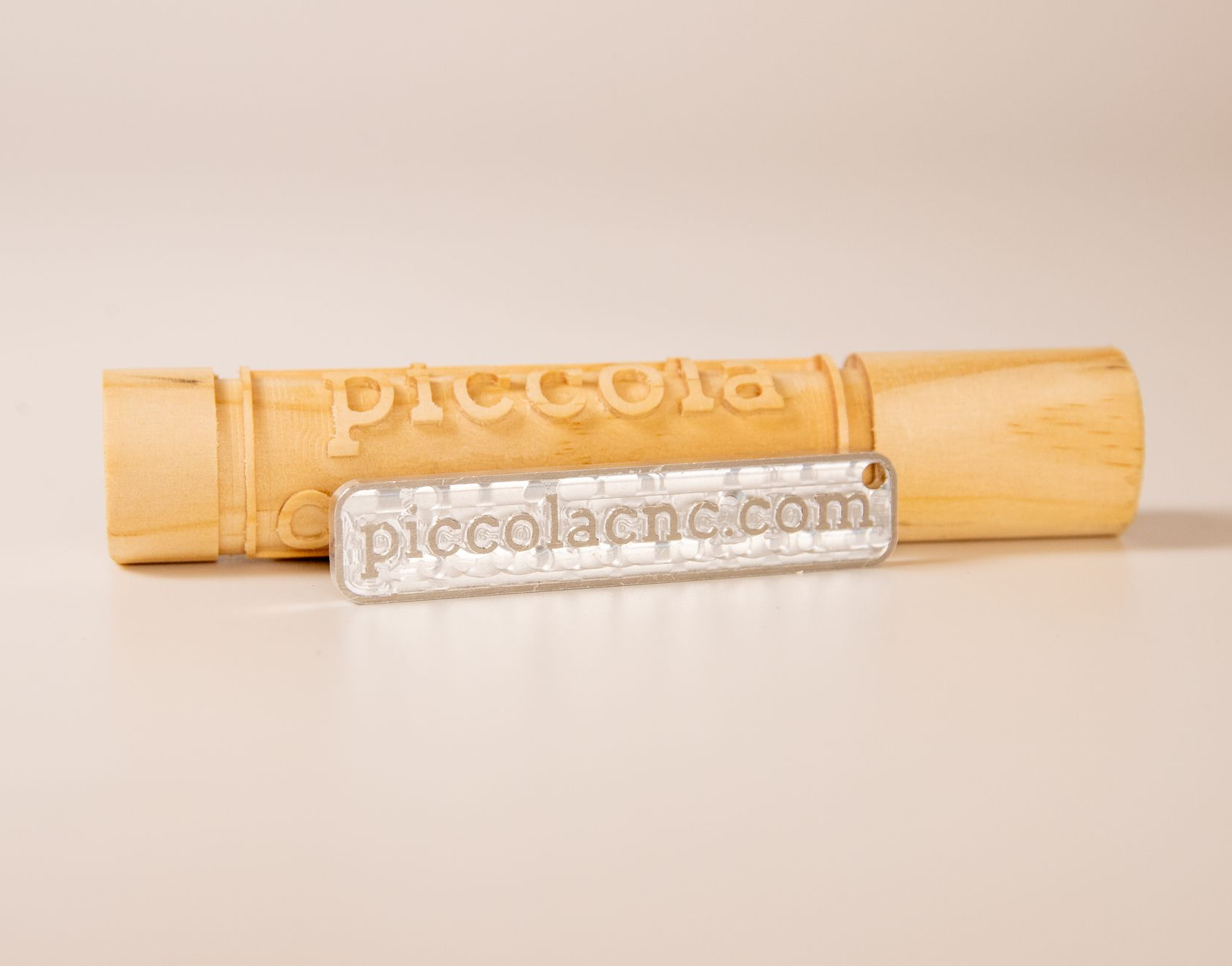

Design it, mill it

Design it, mill it

Join the launch

open source AT DELIVERY

No locked ecosystems, no proprietary lock-in, no black boxes — hardware, firmware, and software. Every drawing, board, and line of code is yours to study, modify, and build on. Own your machine completely, repair it on your terms, and improve it alongside a community that shares every upgrade.

SAFETY BY DESIGN

On enclosed versions, safety is built into both hardware and software. Open the door during a cut and the spindle stops instantly: a dual-channel coded magnetic interlock triggers a relay that physically cuts spindle power, while the firmware halts the axes and moves head up. The controller continuously monitors the relay's mirror contacts — if a contact ever welds or fails, the machine blocks any spindle start and reports the fault. The emergency stop runs on its own circuit, independent of the software and the wireless connection.


Together these achieve Performance Level c (PL c) per EN ISO 13849-1 — the level that makes Piccola suitable for use in workshops, makerspaces and classrooms.

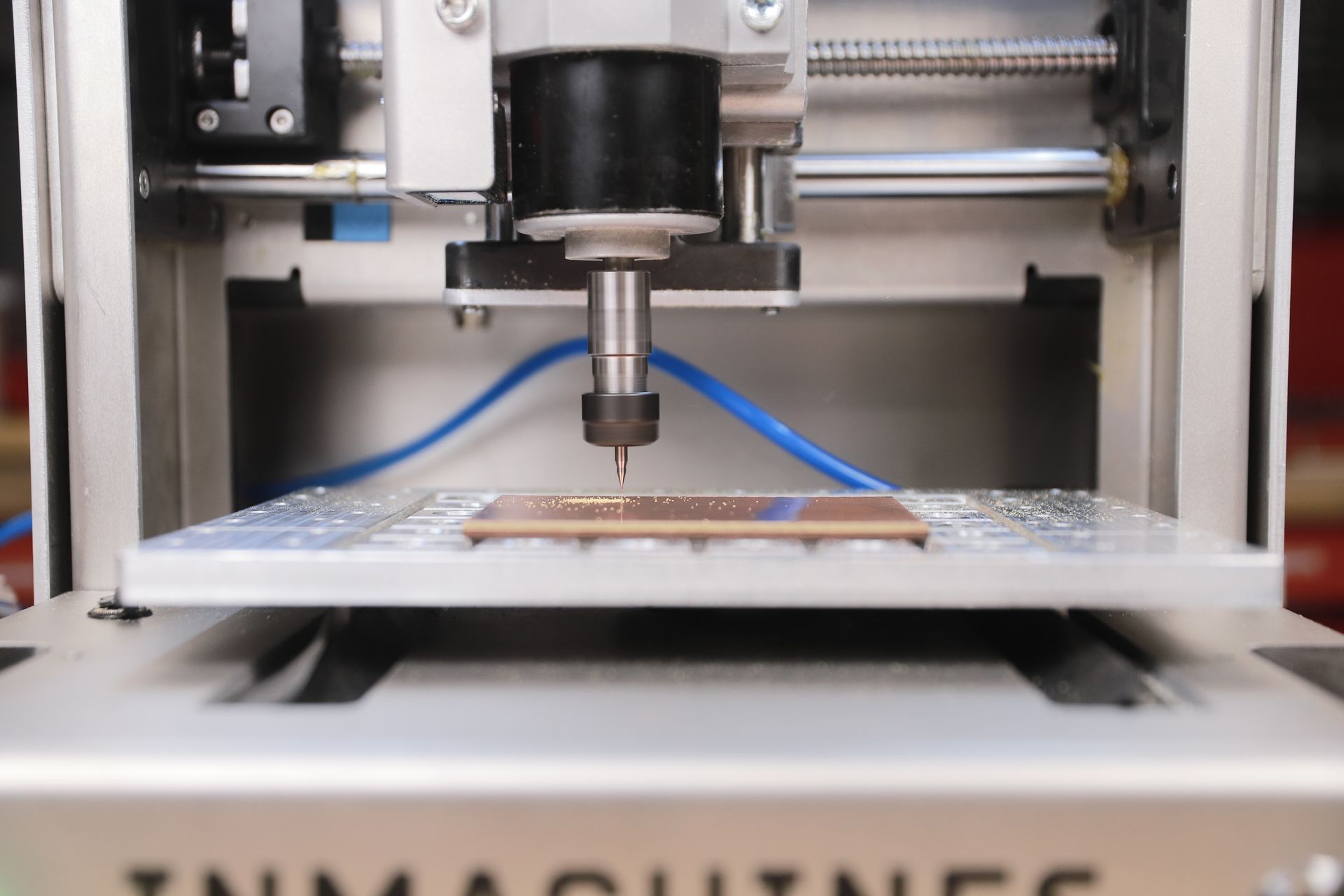

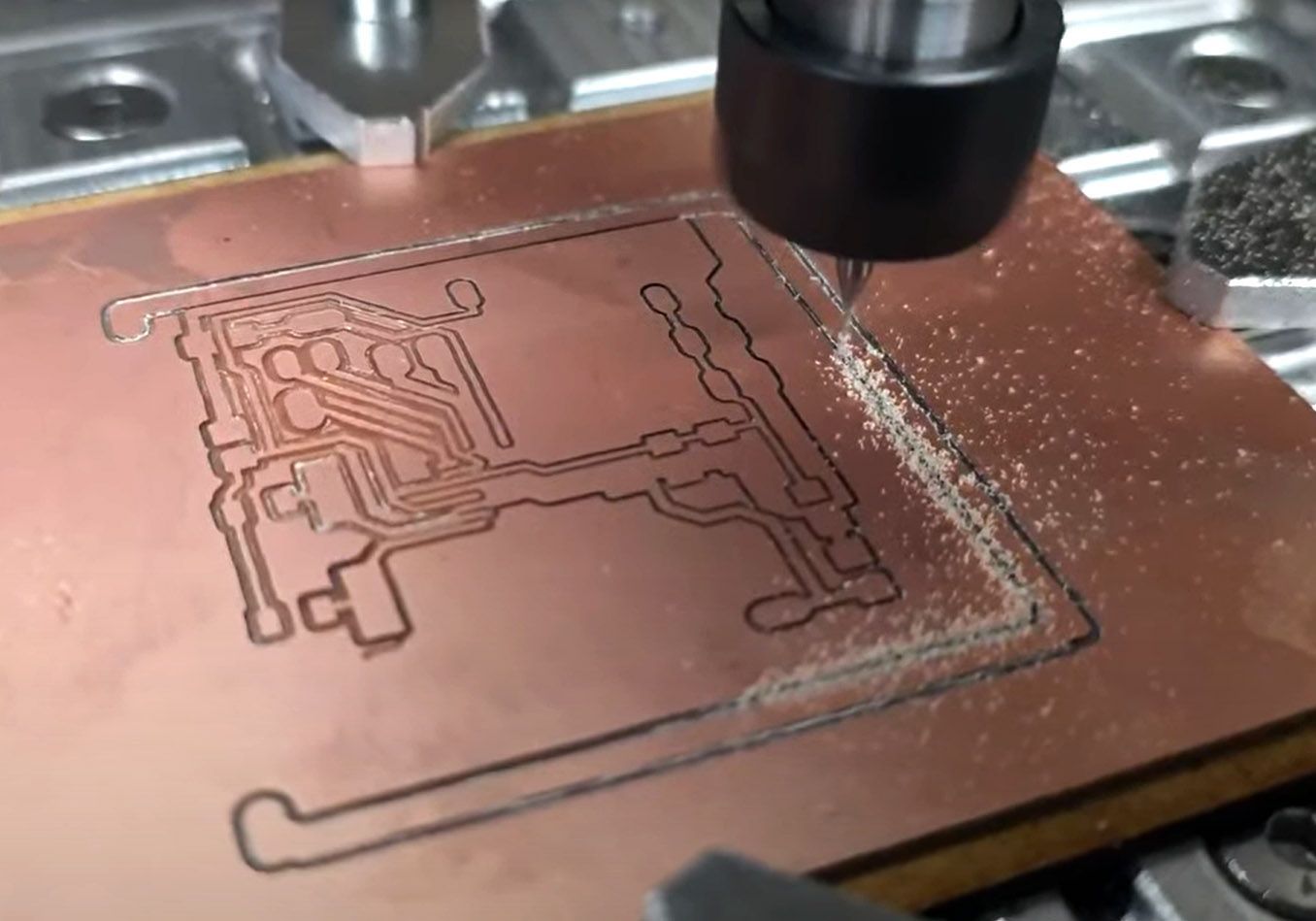

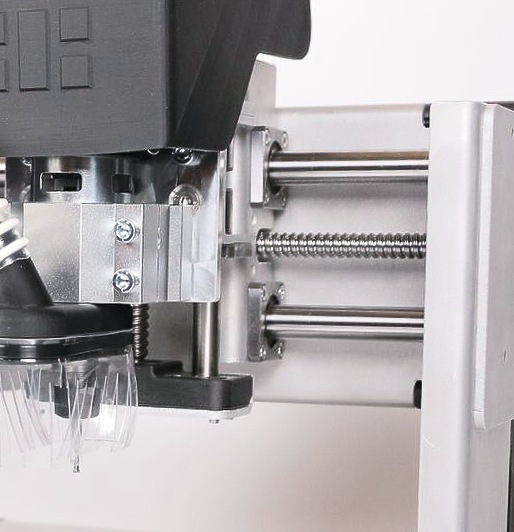

Rigidity & Accuracy

High precision and quality with a metal bended frame and industrial grade motion. Repeatability <10 µm in 5 mm rapids, <2 µm over 0.1 mm

automatic workflow

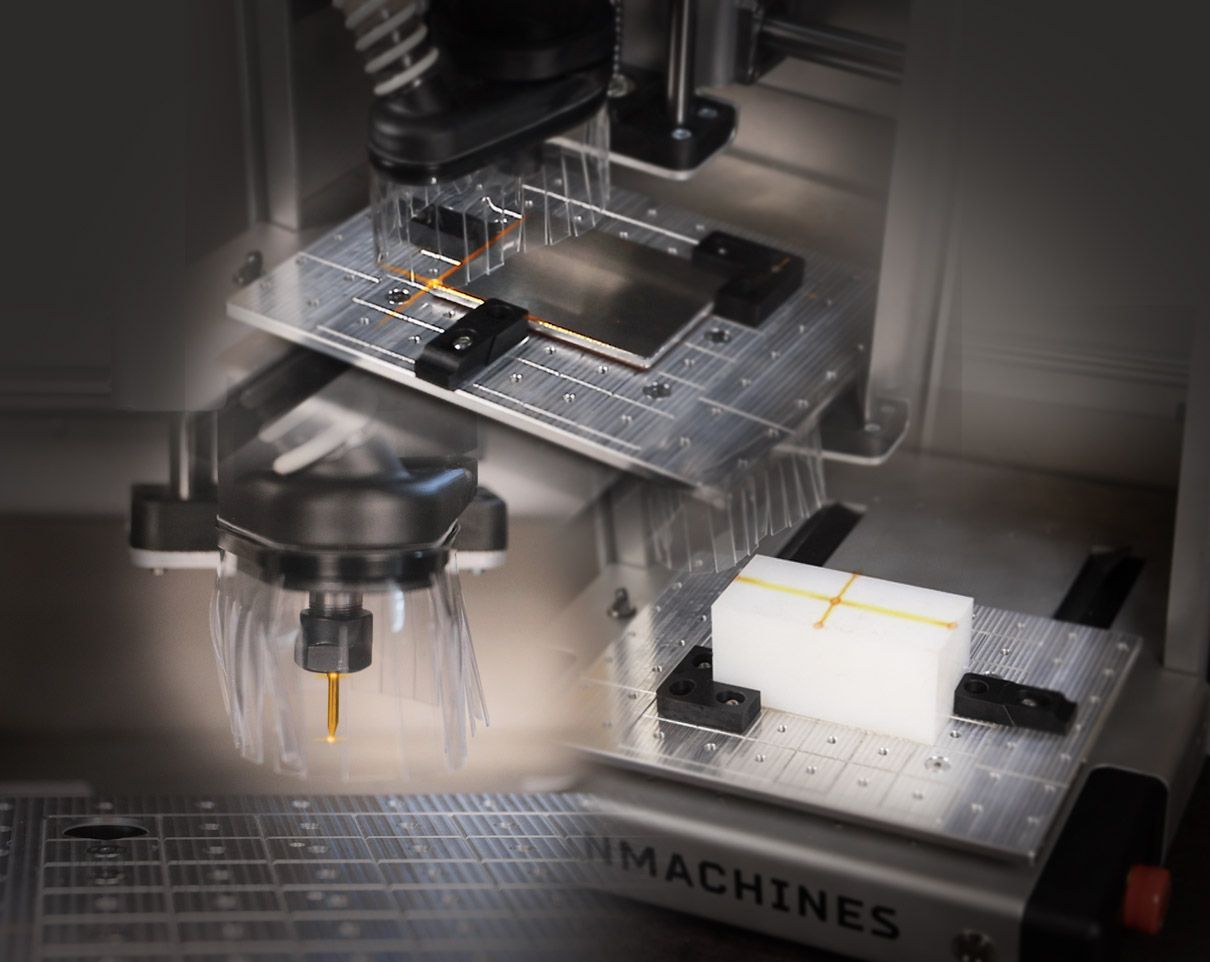

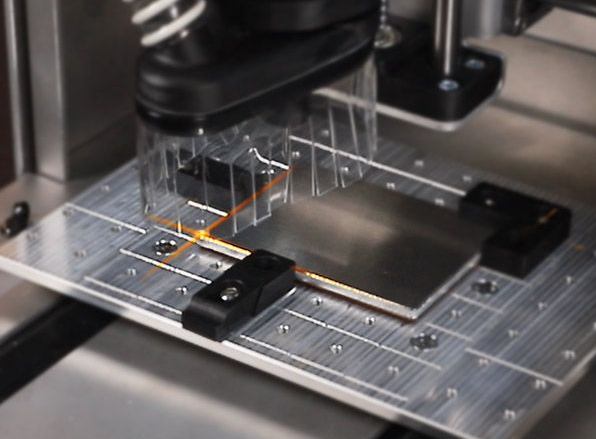

Upgrade your workflow with advanced features: Edge Finding, Center Finding, Height Map, Dry Run, Frame and more.

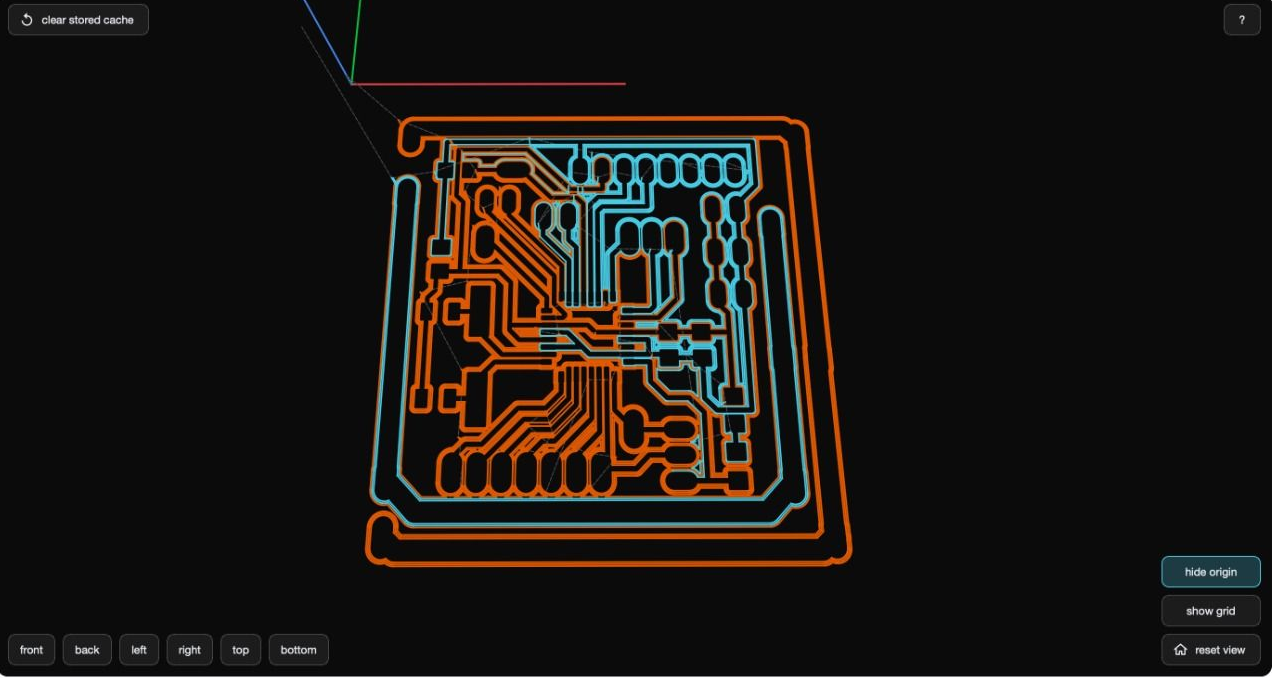

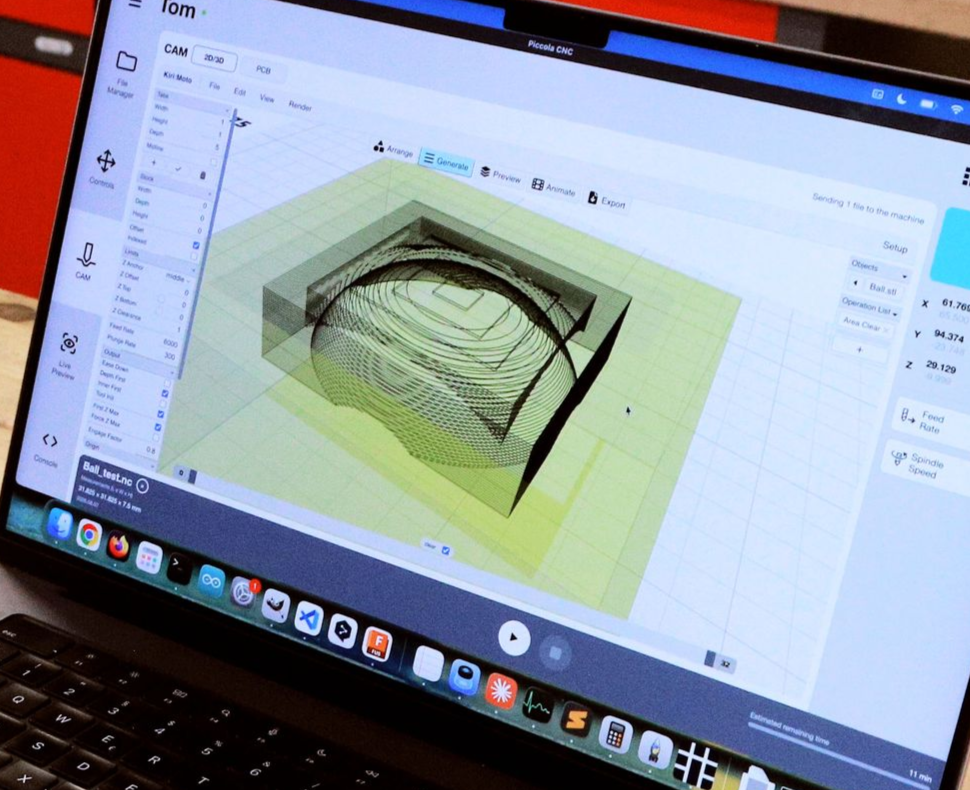

All-in-one software

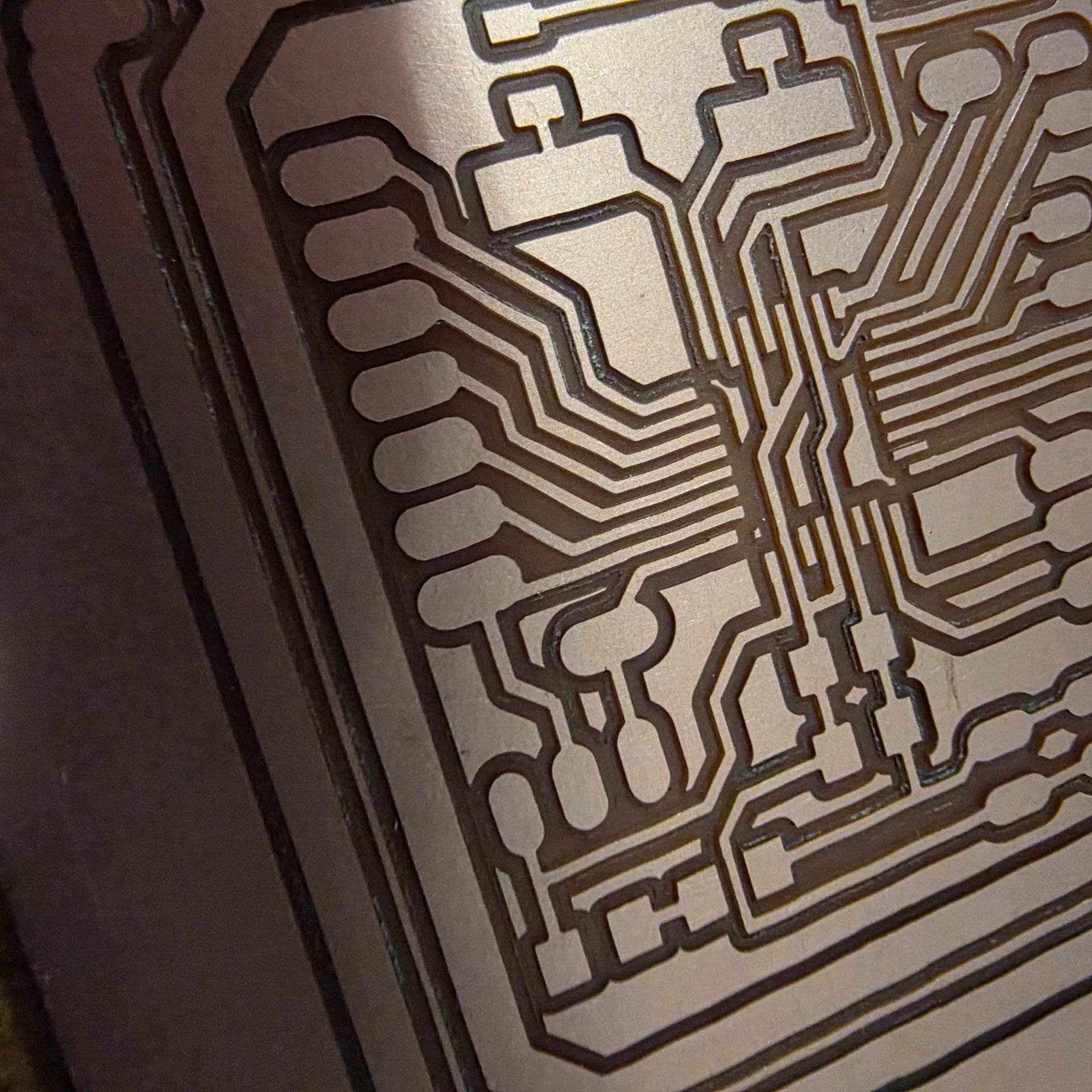

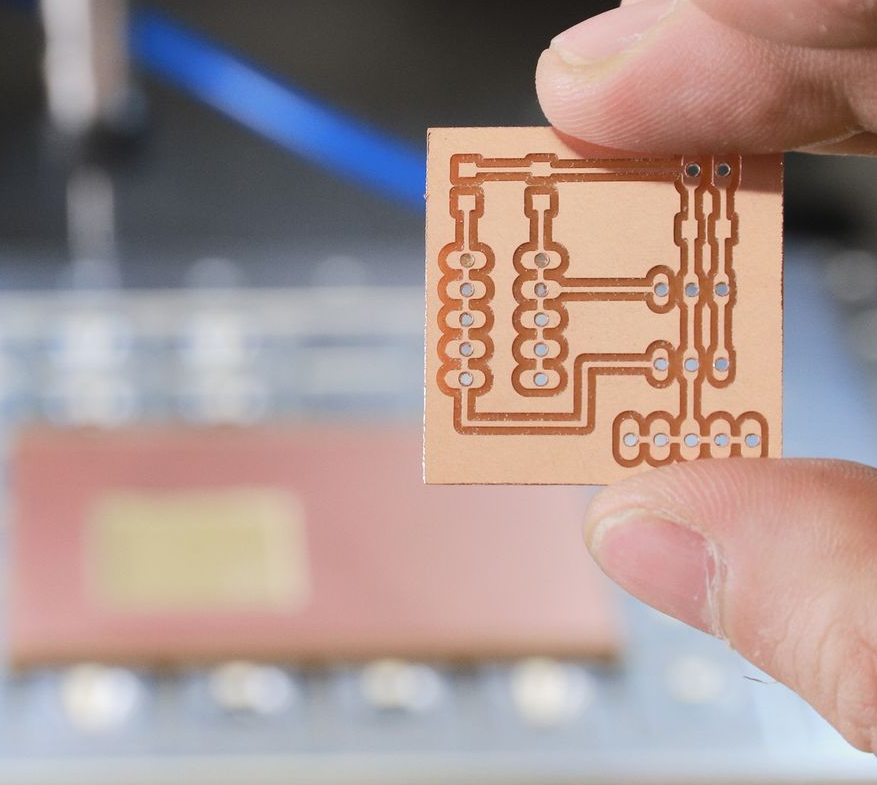

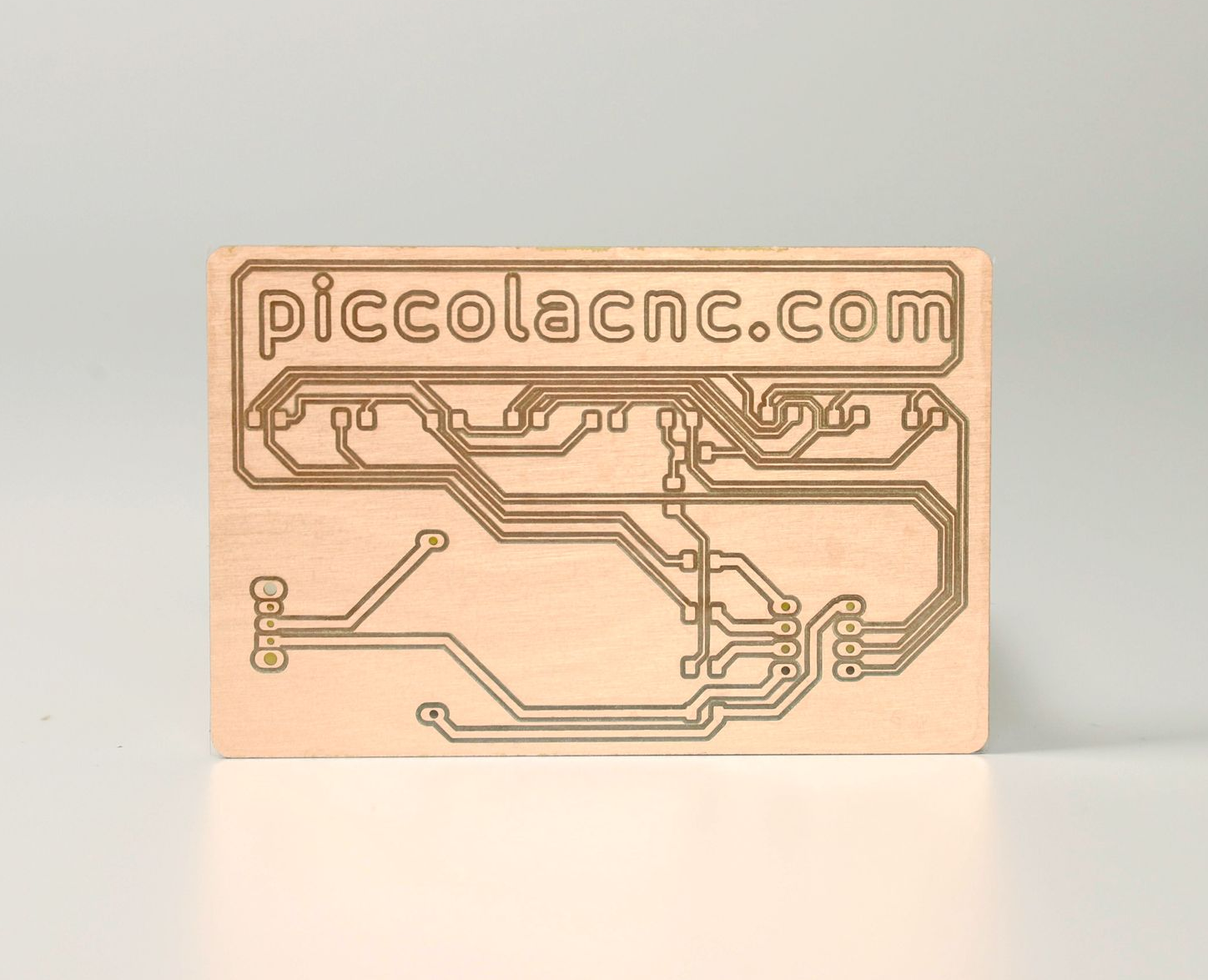

Prepare the file and mill it - all in the same place. With the integrated CAM for PCBs, 2D and 3D parts, the workflow is faster and frictionless - no need to export, convert, or jump between programs. Developed with EasyTrace5000 and Kiri:Moto, both open source like the rest of Piccola CNC.

Join the launch

FEATURES HIGHLIGHTS

What's Inside

Every feature engineered to fit a maker's need in hardware and software.

Join the launch

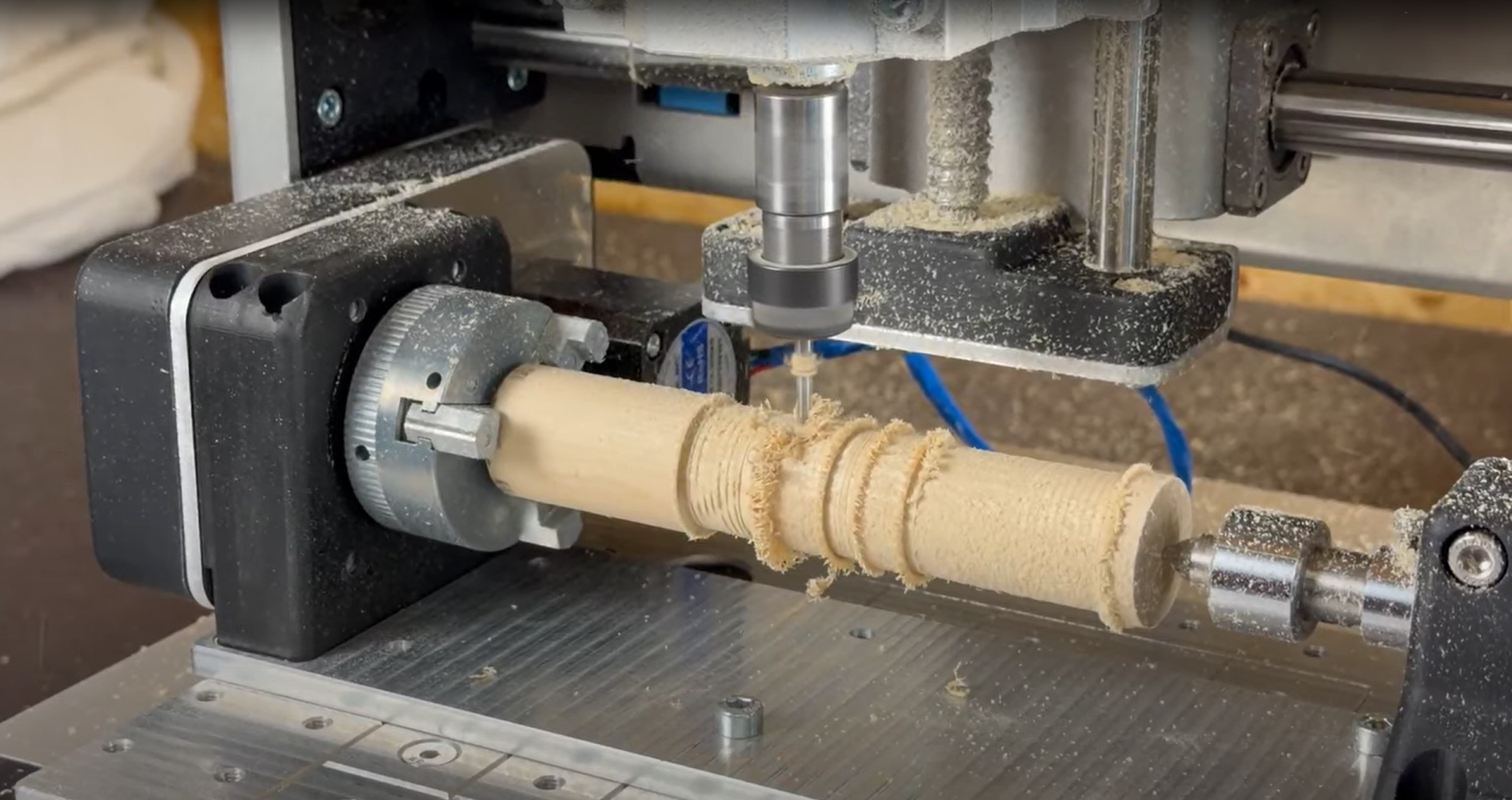

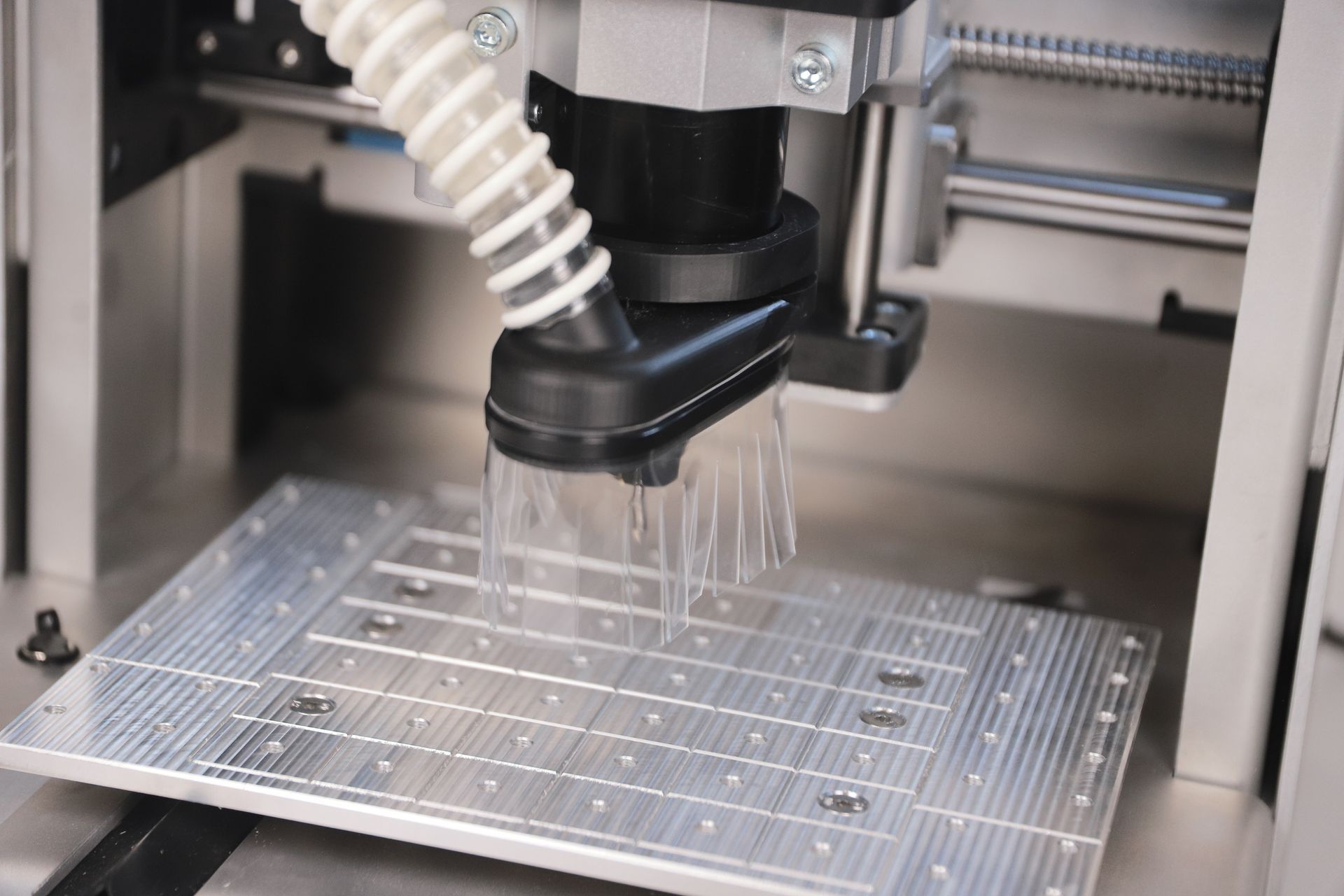

Accessories

Customize it

Plug & play accessories which fits to your needs.

Join the launch

OPTIONS

Configurations at a glance

Machine options to fit your budget and needs.

Piccola CNC Basic

General

  • Cutting area of 150 x 150 x 70 mm
  • Weight: 15 kg
  • Dimensions: 350 x 400 x 370 (WxDxH mm)
  • Full aluminium sheet bended frame

Spindle

  • 100W 24V Brushed Spindle
  • 20000 rpm
  • ER 11 collets

Motion

  • Max. speed: 2000 mm/min
  • Belt-driven 1204 ballscrews (XYZ axes)
  • 16 mm linear shafts (X axis), 12 mm linear shafts (Y and Z axes)
  • Resolution: 0.0025 mm
  • Repeatability <10 µm in 5 mm rapids, <2 µm over 0.1 mm

Connectivity & Software

  • USB-C connection
  • WiFi Connection

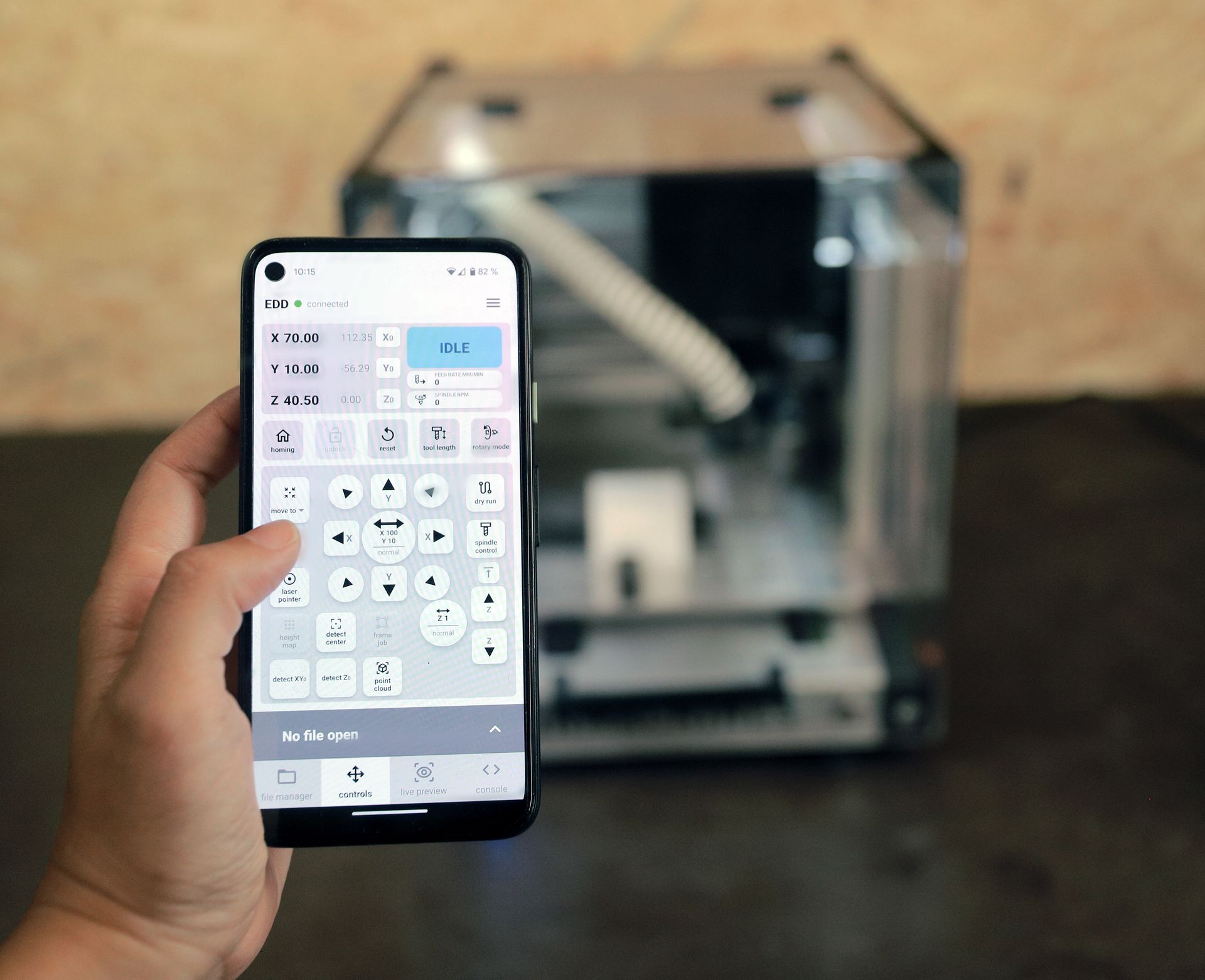

  • Mobile and Desktop Software

Features

  • Tool length detection
  • Exhaust
  • PCB Auto-leveling (height map)














Piccola CNC Pro

General

  • Cutting area of 150 x 150 x 70 mm
  • Weight: 20 kg
  • Dimensions: 350 x 455 x 400 (WxDxH mm)
  • Full aluminium sheet bended frame

Spindle

  • 200W 48V Brushed Spindle
  • 12000 rpm
  • ER 11 collets

Motion

  • Max. speed: 2000 mm/min
  • Belt-driven 1204 ballscrews (XYZ axes)
  • 16 mm linear shafts (X axis), 12 mm linear shafts (Y and Z axes)
  • Resolution: 0.0025 mm
  • Repeatability <10 µm in 5 mm rapids, <2 µm over 0.1 mm

Connectivity & Software

  • USB-C connection
  • WiFi Connection
  • Mobile and Desktop Software

Features

  • Tool length detection
  • Exhaust
  • PCB Auto-leveling (height map)
  • Fully enclosed
  • LED lights
  • Industrial Grade Safety











Piccola CNC Ultimate

General

  • Cutting area of 150 x 150 x 70 mm
  • Weight: 20 kg
  • Dimensions: 350 x 455 x 400 (WxDxH mm)
  • Full aluminium sheet bended frame

Spindle

  • 200W 48V Brushless Spindle
  • Longer lasting
  • Higher torque
  • Silent motor
  • Fault recovery
  • 12000 rpm
  • ER 11 collets

Motion

  • Max. speed: 2000 mm/min
  • Belt-driven 1204 ballscrews (XYZ axes)
  • 16 mm linear shafts (X axis), 12 mm linear shafts (Y and Z axes)
  • Resolution: 0.0025 mm
  • Repeatability <10 µm in 5 mm rapids, <2 µm over 0.1 mm

Connectivity & Software

  • USB-C connection
  • WiFi Connection
  • Mobile and Desktop Software

Features

  • Tool length detection
  • Exhaust
  • General Auto-leveling (height map)
  • Fully enclosed
  • LED lights
  • Industrial Grade Safety
  • XY-zero detection
  • Center detection

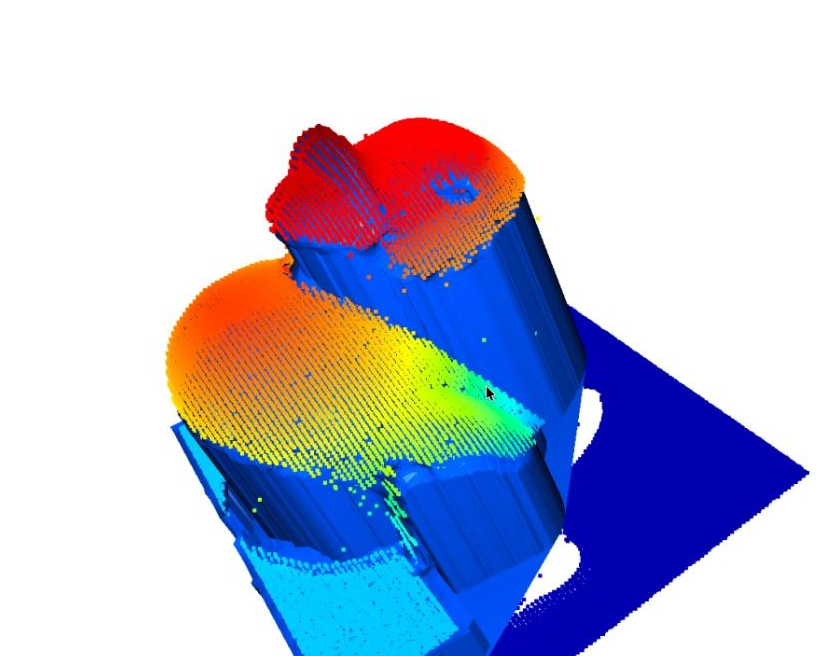

  • 3D scanning


Piccola CNC Basic

General

  • Cutting area of 150 x 150 x 70 mm
  • Weight: 15 kg
  • Dimensions: 350 x 400 x 370 (WxDxH mm)
  • Full aluminium sheet bended frame

Spindle

  • 100W 24V Brushed Spindle
  • 20000 rpm
  • ER 11 collets

Motion

  • Max. speed: 2000 mm/min
  • Belt-driven 1204 ballscrews (XYZ axes)
  • 16 mm linear shafts (X axis), 12 mm linear shafts (Y and Z axes)
  • Resolution: 0.0025 mm
  • Repeatability <10 µm in 5 mm rapids, <2 µm over 0.1 mm

Connectivity & Software

  • USB-C connection
  • WiFi Connection
  • Mobile and Desktop Software

Features

  • Tool length detection
  • Exhaust
  • PCB Auto-leveling (height map)



Piccola CNC Basic

MSRP €1499 after launch

Super Early Bird €1279  VAT incl.

Piccola CNC Pro

General

  • Cutting area of 150 x 150 x 70 mm
  • Weight: 20 kg
  • Dimensions: 350 x 455 x 400 (WxDxH mm)
  • Full aluminium sheet bended frame

Spindle

  • 200W 48V Brushed Spindle
  • 12000 rpm
  • ER 11 collets

Motion

  • Max. speed: 2000 mm/min
  • Belt-driven 1204 ballscrews (XYZ axes)
  • 16 mm linear shafts (X axis), 12 mm linear shafts (Y and Z axes)
  • Resolution: 0.0025 mm
  • Repeatability <10 µm in 5 mm rapids, <2 µm over 0.1 mm

Connectivity & Software

  • USB-C connection
  • WiFi Connection
  • Mobile and Desktop Software

Features

  • Tool length detection
  • Exhaust
  • PCB Auto-leveling (height map)
  • Fully enclosed
  • LED lights
  • Industrial Grade Safety


Piccola CNC PRO

MSRP €1999 after launch

Super Early Bird €1679  VAT incl.

Piccola CNC Ultimate

General

  • Cutting area of 150 x 150 x 70 mm
  • Weight: 20 kg
  • Dimensions: 350 x 455 x 400 (WxDxH mm)
  • Full aluminium sheet bended frame

Spindle

  • 200W 48V Brushless Spindle
  • Longer lasting
  • Higher torque
  • Silent motor
  • Fault recovery
  • 12000 rpm
  • ER 11 collets

Motion

  • Max. speed: 2000 mm/min
  • Belt-driven 1204 ballscrews (XYZ axes)
  • 16 mm linear shafts (X axis), 12 mm linear shafts (Y and Z axes)
  • Resolution: 0.0025 mm
  • Repeatability <10 µm in 5 mm rapids, <2 µm over 0.1 mm

Connectivity & Software

  • USB-C connection
  • WiFi Connection
  • Mobile and Desktop Software

Features

  • Tool length detection
  • Exhaust
  • General Auto-leveling (height map)
  • Fully enclosed
  • LED lights
  • Industrial Grade Safety
  • XY-zero detection
  • Center detection
  • 3D scanning


Piccola CNC Ultimate

MSRP €2499  after launch

Super Early Bird €1979   VAT incl.

Piccola CNC Basic

General

  • Cutting area of 150 x 150 x 70 mm
  • Weight: 15 kg
  • Dimensions: 350 x 400 x 370 (WxDxH mm)
  • Full aluminium sheet bended frame

Spindle

  • 100W 24V Brushed Spindle
  • 20000 rpm
  • ER 11 collets

Motion

  • Max. speed: 2000 mm/min
  • Belt-driven 1204 ballscrews (XYZ axes)
  • 16 mm linear shafts (X axis), 12 mm linear shafts (Y and Z axes)
  • Resolution: 0.0025 mm
  • Repeatability <10 µm in 5 mm rapids, <2 µm over 0.1 mm

Connectivity & Software

  • USB-C connection
  • WiFi Connection
  • Mobile and Desktop Software

Features

  • Tool length detection
  • Exhaust
  • PCB Auto-leveling (height map)












Piccola CNC Pro

General

  • Cutting area of 150 x 150 x 70 mm
  • Weight: 20 kg
  • Dimensions: 350 x 455 x 400 (WxDxH mm)
  • Full aluminium sheet bended frame

Spindle

  • 200W 48V Brushed Spindle
  • 12000 rpm
  • ER 11 collets

Motion

  • Max. speed: 2000 mm/min
  • Belt-driven 1204 ballscrews (XYZ axes)
  • 16 mm linear shafts (X axis), 12 mm linear shafts (Y and Z axes)
  • Resolution: 0.0025 mm
  • Repeatability <10 µm in 5 mm rapids, <2 µm over 0.1 mm

Connectivity & Software

  • USB-C connection
  • WiFi Connection
  • Mobile and Desktop Software

Features

  • Tool length detection
  • Exhaust
  • PCB Auto-leveling (height map)
  • Fully enclosed
  • LED lights
  • Industrial Grade Safety









Piccola CNC Ultimate

General

  • Cutting area of 150 x 150 x 70 mm
  • Weight: 20 kg
  • Dimensions: 350 x 455 x 400 (WxDxH mm)
  • Full aluminium sheet bended frame

Spindle

  • 200W 48V Brushless Spindle
  • Longer lasting
  • Higher torque
  • Silent motor
  • Fault recovery
  • 12000 rpm
  • ER 11 collets

Motion

  • Max. speed: 2000 mm/min
  • Belt-driven 1204 ballscrews (XYZ axes)
  • 16 mm linear shafts (X axis), 12 mm linear shafts (Y and Z axes)
  • Resolution: 0.0025 mm
  • Repeatability <10 µm in 5 mm rapids, <2 µm over 0.1 mm

Connectivity & Software

  • USB-C connection
  • WiFi Connection
  • Mobile and Desktop Software

Features

  • Tool length detection
  • Exhaust
  • General Auto-leveling (height map)
  • Fully enclosed
  • LED lights
  • Industrial Grade Safety
  • Edge finding
  • Center detection
  • 3D scanning



Join the launch

ABOUT US

A company with 10 years of expertise

Piccola CNC is made by InMachines, an open-source machine-building company based in Germany, created to bridge the gap between closed commercial fabrication machines and open hardware.


Founded by Daniele Ingrassia — who brings ten years of open-source machine-building experience — InMachines is already trusted by Fab Labs, makerspaces, universities, and institutions around the world. In just six years, our small, international team of experienced engineers and makers has designed digital fabrication machines that are both capable and open — from CNC mills to laser cutters and 3D printers — and shared the knowledge to build them.


Piccola CNC is our first commercial machine, built with the same philosophy and all of that experience.

Visit InMachines website to learn more

Join the launch

For schools, universities & institutions

Buying for a classroom, organisation, or makerspace? We know procurement doesn't always fit a crowdfunding campaign — so you can order directly from us instead.


Let us know what you're planning and we'll work to fit your requirements and provide the documentation your institution needs for approval.
